Art. 3797

T-FAL® Soffit joint profile 6-LG

Short description:

Plastering strip with elastic lip and fabric strips for sticking to window or door frames in order to form straight soffits with a thermal insulation system. The foam adhesive tape absorbs movements between the thermal insulation system and the window/door frame, the rigid peel-off strips with double-sided adhesive tape are used for clean adhesion of the protective film.

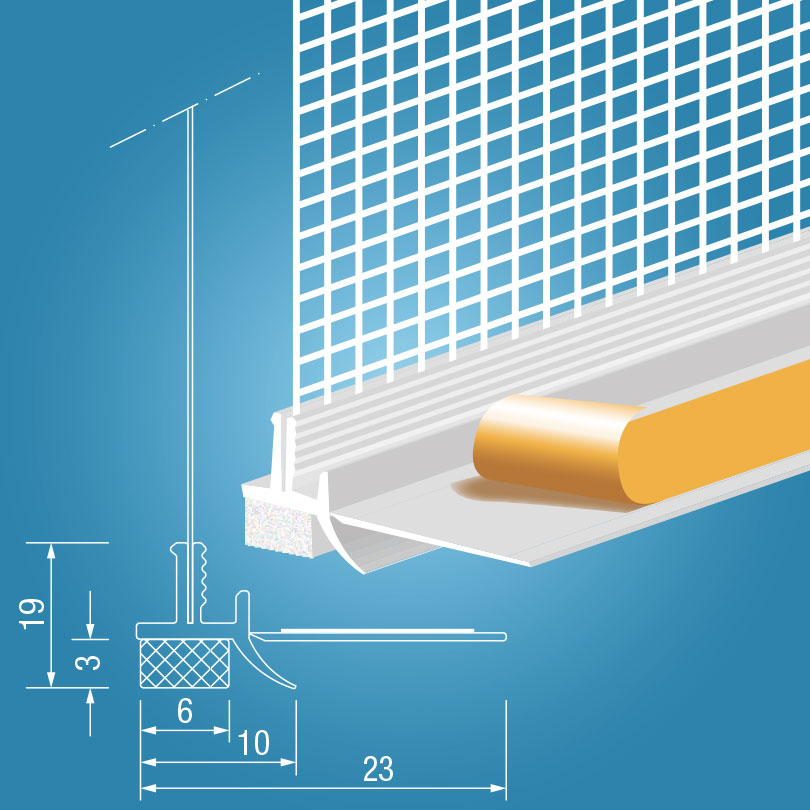

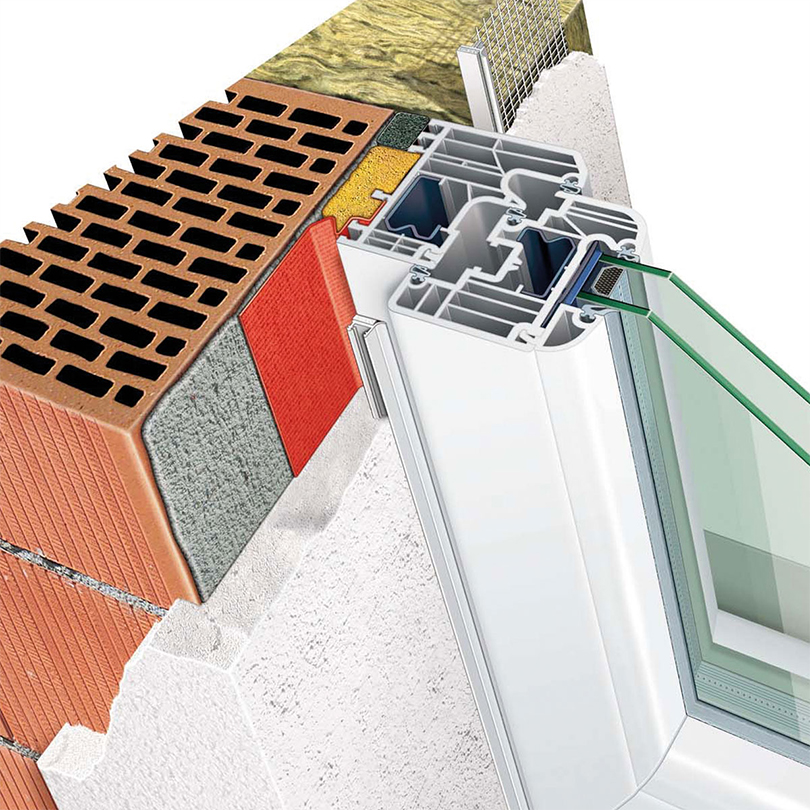

3797 Maße 3797 Einbau 3797 Maße
3797

Product description

Description:

adhesive soffit joint profile with an elastic lip, fabric strips (4 × 4 mm), a rigid peel-off strip and white PE foam adhesive tape.
The lip gives the look of a permanently elastic joint. Soiling of the foam adhesive tape is thus prevented. The necessary ongoing protection of the foam adhesive tape against UV radiation is thus likewise guaranteed. Sealing with a permanently elastic sealant (acrylic, silicone, etc.) is not necessary.
The rigid peel-off strips with double-sided adhesive tape allow for clean adhesion of the protective film. The use of additional adhesive tapes is no longer necessary.

Please read the processing instructions for T-FAL® Soffit joint profiles.

For the areas of use of the T-FAL®soffit joint profiles, refer to the current T-FAL® application table.

Briefly:

  • 12 cm of fabric strips (4 × 4 mm mesh)
  • Elastic lip
  • Rigid peel-off strips
  • 6 mm wide
  • 3 mm foam adhesive tape

Eigenschaften:

  • Visually appealing plaster joint
  • 3 mm three-dimensional movement absorption
  • UV-resistant thanks to the elastic lip
  • Airtight (windproof) and driving rain proof foam adhesive tape

Product data

  Art.-No. Length Packaging Unit: Pallet Unit:
  3797250 250 cm 60 bars / bundle = 150 rm 30 bundles / pallet = 4500 rm
  3797260 260 cm 60 bars / bundle = 156 rm 30 bundles / pallet = 4680 rm

Downloads



Technical data sheet

 PDF 0,2 MB Download


Processing instructions

 PDF 1,0 MB Download


Audit report ABO L 01 07 05. 6k p

Driving rain impermeability of the foam adhesive tape		 PDF 0,3 MB Download


Audit report ABO L 01 07 05. 5k p

Air permeability of the foam adhesive tape		 PDF 0,4 MB Download


Audit report ABO Z 04 03 16. 4

Breaking elongation of the foam adhesive tape		 PDF 0,1 MB Download
